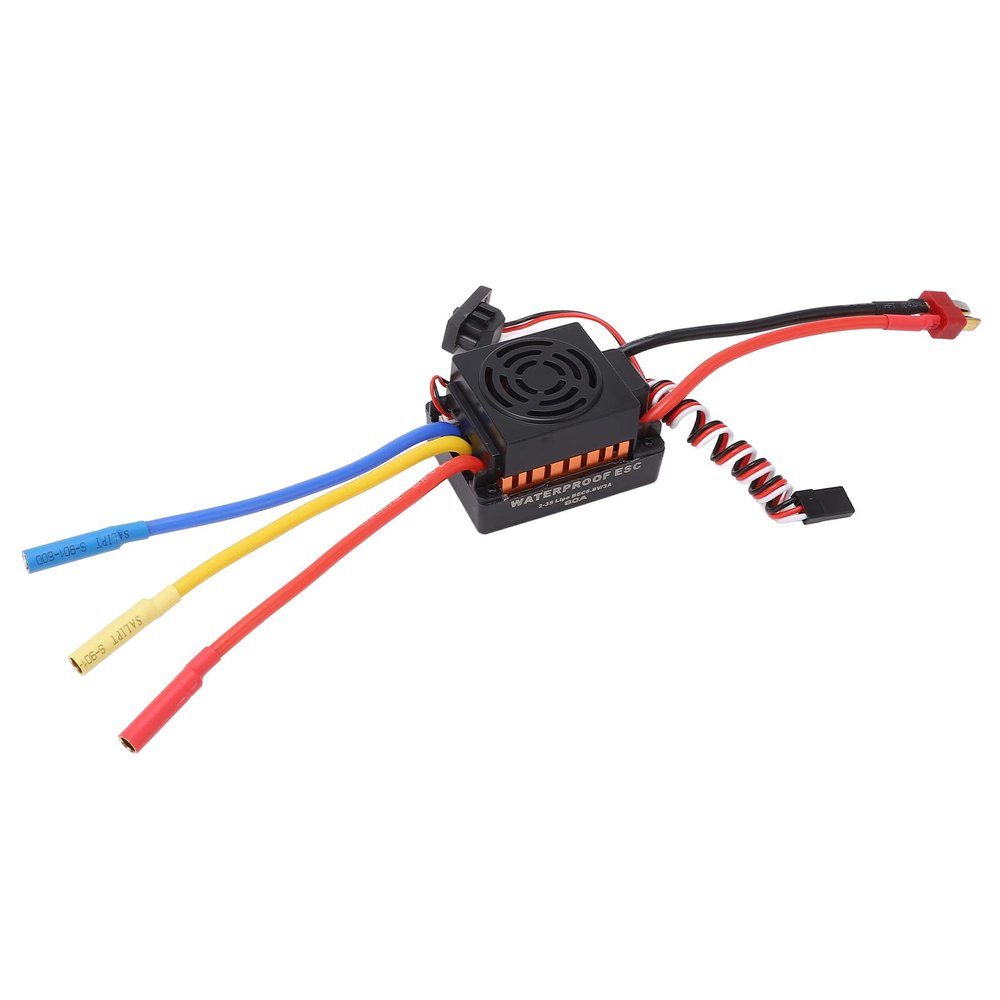

60A RC Brushless Electric Speed Controller, Full ESC Upgrade Part Fit for 1/10 1/12 1/16 RC Cars

Description

• Practical UsageMade of plastic and aluminum alloy materials, proportional braking with 4 level maximum braking force adjustment and 8 level braking force adjustment.
• Applicable ScopeWorks with sensorless brushless motor and 2-3s cells lipo battery. With plug, and dustproof, specially designed for 1/10 RC model car.
• Full Low voltage cut off , overheating , throttle loss and motor stall .
• Better PerformanceBuilt in 5.8V 3A BEC, external programming port. The ESC has strong anti current ability, good heat dissipation performance and long service life.
• What You Get1x RC Brushless ESC, 1 x User Manual, please feel to us if you have any question.We are committed to providing you with better products and services.

Specification
Item Type: RC Brushless ESC
Material: Plastic, Aluminum Alloy
Colour: Black
Continuous Current: 60A
Maximum Current: 320A
Resistance: 0.0007ohm
Battery: 2-3s Cells Lipo
Motor Support: Sensorless Brushless
Bec Output: 5.8V 3A (switch Mode)
Product Size: Approx. 50 x 36 x 31mm / 0.2 x 1.4 x 1.2in(without Wire)
Suitable For: Suitable for 1/10 1/12 1/16 RC Cars, Suitable for Brushless Motors Such As 540/3650

How to Use
1. Connect the BEC cable to the receiver
2. Connect the motor leads to the ESC
3. Turn on the transmitter
4. Connect the battery pack to the ESC, then turn on the ESC
5. After the connection between the motor and the battery is completed, the motor emits a "beep beep" sound
6. When the throttle stick is in the neutral position, the motor makes a "beep beep" sound again
7. The ESC is normal

Package List
1 x RC Brushless ESC
1 x User Manual
