Description

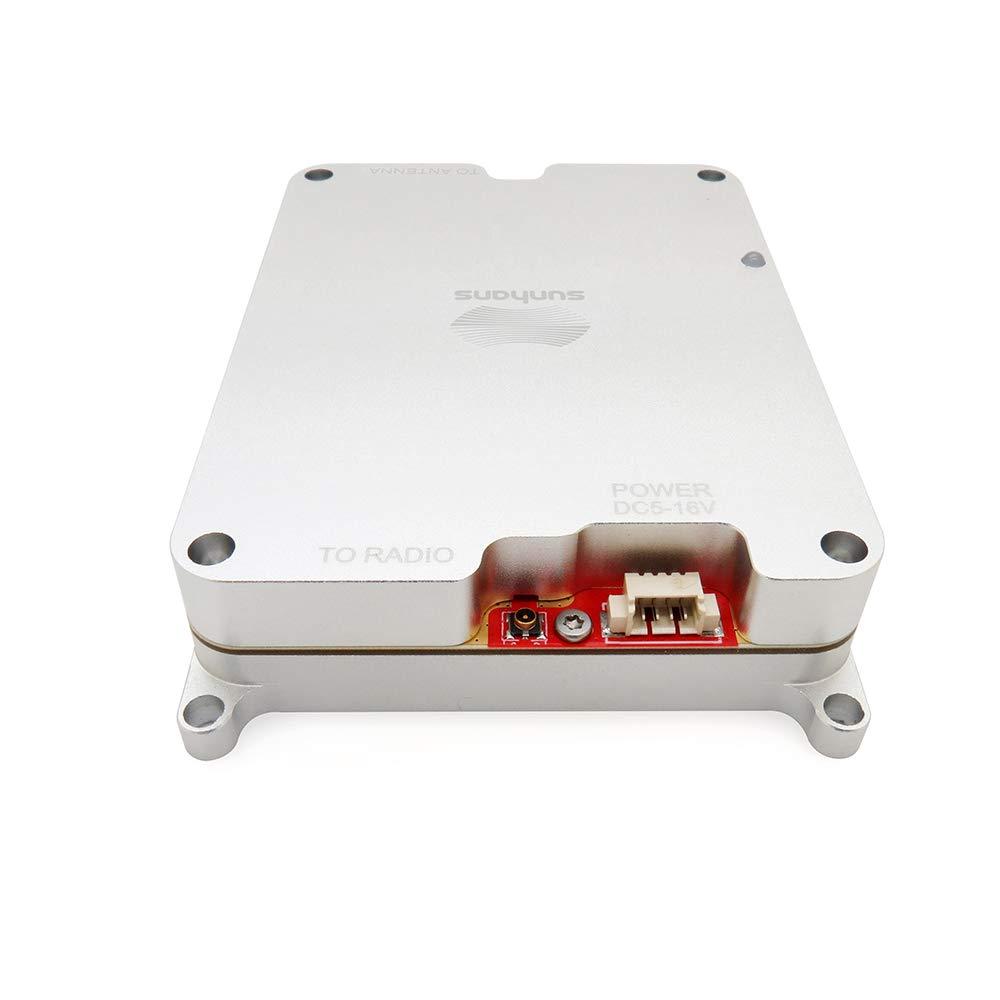

- [2.4G &5.8G 4000mW WiFi Signal Booster] eSunRC WiFi signal booster have the feature of light weight(5.04oz) and small size(3.70*2.50*0.67in) can easy install in DJI drones ,XIRO UAV , RC remote, boost wifi signal range to extend the flying distance of drones.
- [Brand new and high quality] 2.4G &5.8G dual band could Auto switch frequency,Max. 4000mW real output power; 5-16V wide voltage range,support different power supply;Aluminum-alloy case by CNC, anti-interference; Which has been repeatedly tested to ensure high quality products for customers ,Designed for Drones, UAV, RC equipment.

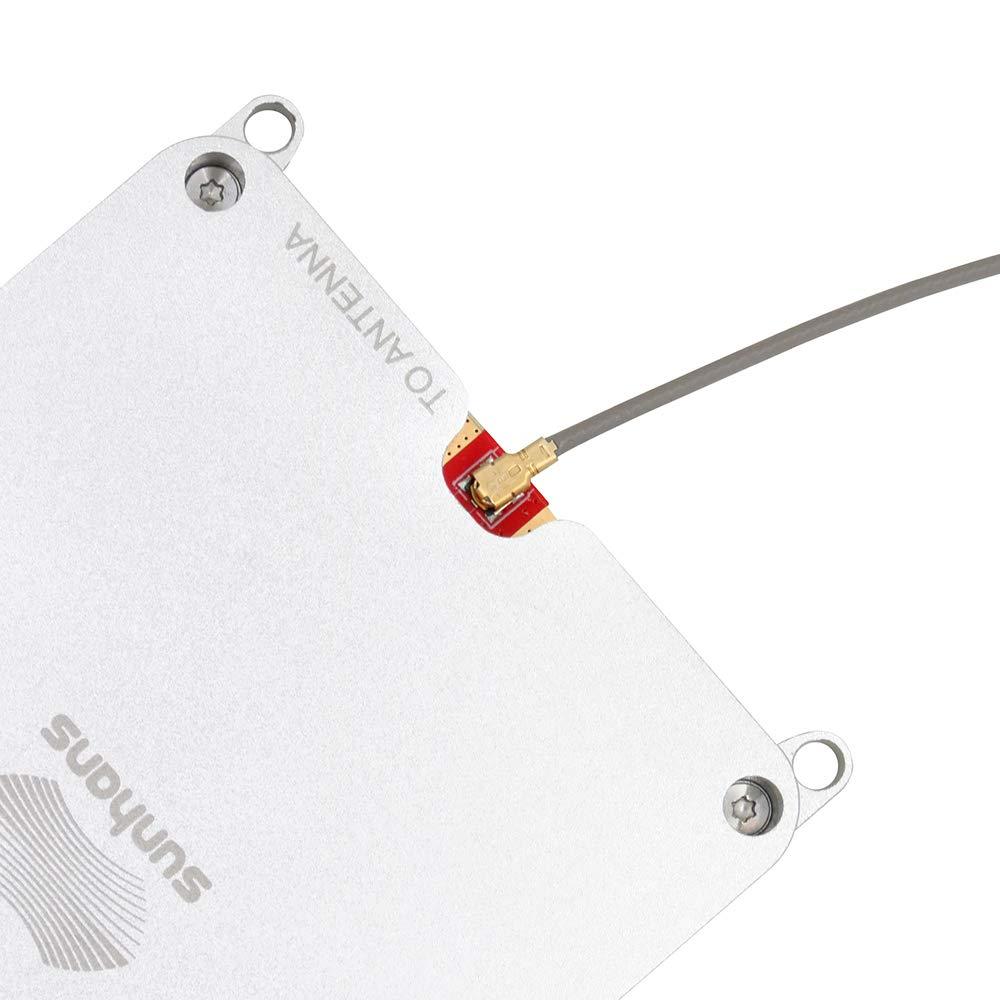

- [2.4GHz &5.8G Hz Signal Booster Coverage Range and usage] eSunRC WiFi signal booster Maximum output power 4000mw, transmit gain 16db~19db can greatly improve coverage and transmit distance. It could install in drones or remote control , Radio side connect with RC drones, and antenna side with antenna,then it can receive/transmit wifi signal from drones and boost wifi signal range to extend the flying distance of drones.
- [eSunRC WiFi signal booster Application] Sunhans eSunRC 2.4G &5.8G Signal Booster is suitable for DJI, Yuneec, 3DR, XIRO drones; Parrot, JTT and Blade UAV and compatible with them. It also could suitable for router, IP camera, RC helicopter, RC race boat, automobile, Bluetooth, walkie-talkie, beach and flood rescue robot.
- [Packaging and warranty]5.8GHz 2.4GHz 4000mw wifi signal booster kit include 1*SH-RC5824G4W WiFi booster,1* RP-SMA-F to IPEX cable,1*RP-SMA-M to IPEX cable,1 *Header 2 to Header 4 adapter, and can provide one year warranty.
"2.4 GHz-5.8 GHz 4000 mW 36dBm WiFi signal booster has low noise factor; automatic switching frequency can be flexibly switched; 4000 mW output power can better enlarge WiFi signal range; 5-16V voltage range is wide, supporting different power sources; aluminum alloy shell is processed by numerical control, with strong anti-interference ability. Be made of brand new materials has been repeatedly tested to ensure high quality products for customers.
Technical Specifications:
Booster model: SHRC5824G4W
Operating Range : 2.4~2.5GHz; 5.0~5.8GHz
Channel width: 20Mhz&40Mhz&80Mhz Supported standards: IEEE 802.11b/g/n/a Operation mode: Bi-directional, half-duplex, time division duplex
Output power: 4000mW (36dBm)
Input power: 0 ~ 20dBm
Transmit gain: 16 ~ 19dB
Receiver gain: 10dB
Noise figure: 3.5dB typical
Frequency response: 1dBoveroperatingrange
Power adapter: 12V/2A DC, 100~240V
Operating temperature: -20C to +70C
Operating humidity: Up to 75% relative humidity
Material: Cast aluminum
LED light: Power status LED and activity status LED
Booster weight: 143g
Booster size: 9.4*6.3*1.7cm
Package contents:
1 x SH-RC5824G4W WiFi booster
1 x RP-SMA-F to IPEX cable
1 x RP-SMA-M to IPEX cable
1 x Header2 to Header4 adapter
"
